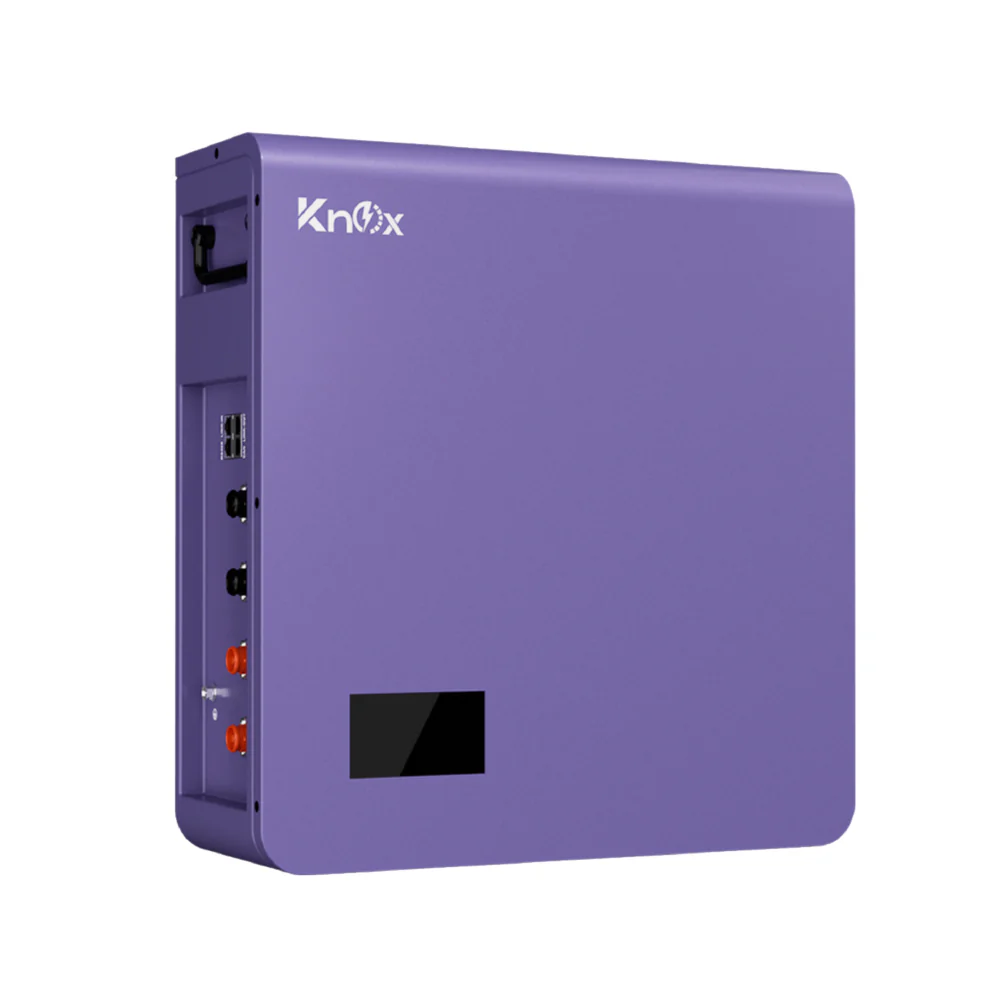

Knox Power Wall 6.11 – 51.2V 100AH

Knox Power Wall 6.11 – 51.2V 100AH IP20 Lithium-Ion Battery – 5.12kWh Wall-Mounted

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₨250,000.00

Add to compare
Add to wishlist
19 People watching this product now!

Payment Methods:

Description

Knox Power Wall 6.11 is a 5.12kWh, 51.2V 100Ah wall-mounted lithium-ion battery designed for safe, scalable, and efficient energy storage. Built with long-life LiFePO4 cells and an advanced BMS, it supports up to 15 units in parallel and integrates easily with major inverter brands via RS485 and CAN. Its sleek IP20-rated design features a 4.3″ touch LCD screen for easy monitoring, wide operating temperatures, and zero maintenance, making it ideal for solar, backup, or off-grid applications.

  • High Performance Energy Storage – 5.12kWh capacity (51.2V, 100Ah) for residential or commercial use
  • Superior Safety – Built-in BMS with protections: OVP, LVP, OCP, OTP, LTP, and short-circuit
  • Long Battery Life – >6000 cycles with a 10-year calendar life
  • Scalable Design – Supports up to 15 units in parallel for expanded energy needs
  • Compact Wall-Mount Build – Sleek IP20-rated housing with quick lock and press-to-release terminals
  • Smart Monitoring – 4.3″ LCD touch screen + PC software for full system diagnostics
  • Inverter Compatibility – RS485 & CAN communication; supports protocol switching via LCD
Model LIO 5.32-IP20
Nominal Voltage [V] 51.2
Nominal Capacity [Ah] 100
Total Energy [Wh] 5120
Dimension (W*D*H, mm) 442*470*160
Weight [Kg] 46.0
Max. Charging Current [A] 100
Max. Discharging Current [A] 100
Pulse Discharge Current 120A @2S
Charging Voltage [V] 55.2~57.6
End of Discharge Voltage [V] 48
Operation Humidity 0~95% RH (No condensing)
Operating Temperature Range Charge: 0 ~ +55°C;
Discharge: -20 ~ +55°C
Cycle Life^{(1)} >6000
Designed Calendar Life 10 Years
Communication interface For inverter : RS485, CAN
For battery to battery: LINK-IN, LINK-OUT
Protection Over voltage, Low voltage, Over current,
Over Temperature, Low Temperature, Short circuit
Parallel Support Yes, Max. 15 Sets
