Description

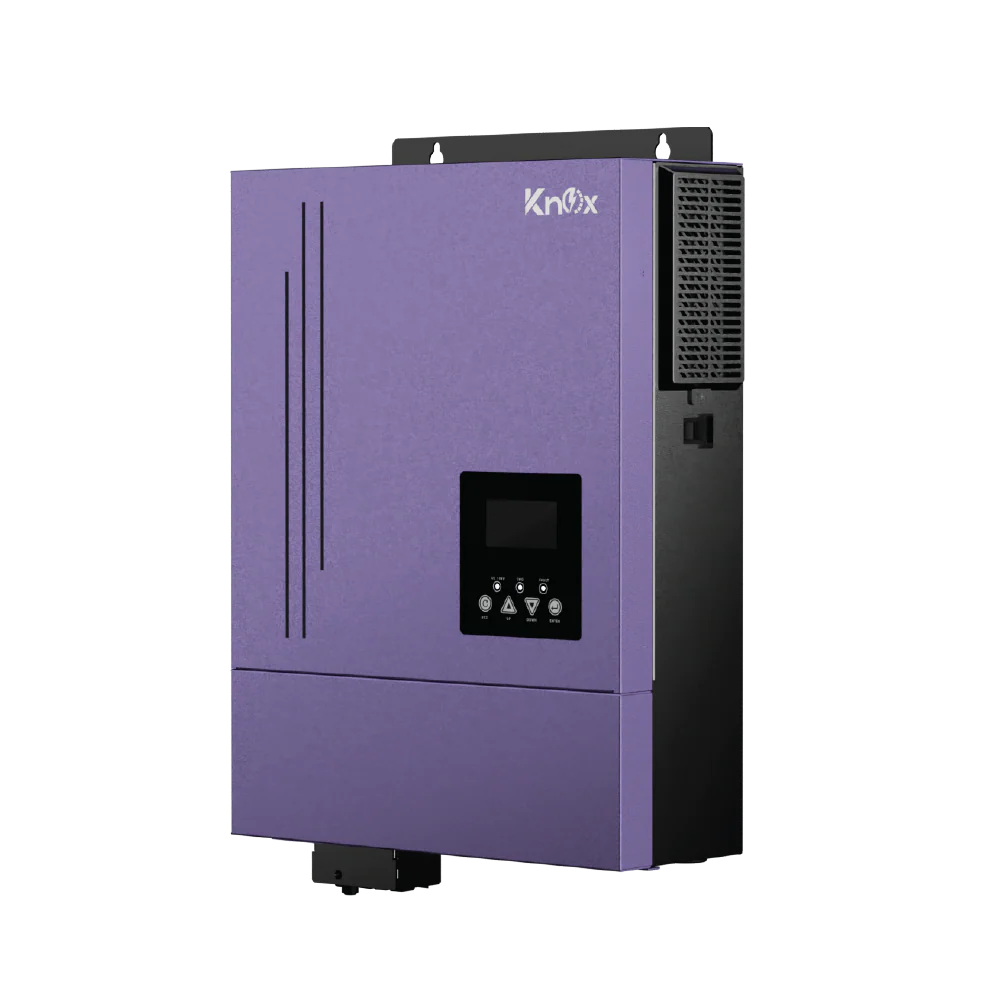

Knox Krypton Eco 5000, a 4.2KW hybrid solar inverter engineered for efficiency and durability. This versatile inverter delivers pure sine wave output, batteryless operation, and dual output grid feeding, making it ideal for both on-grid and off-grid energy solutions. Its wide PV input range and intelligent load management ensure maximum solar utilization with minimal maintenance.
Key Features:
- Pure sine wave solar inverter for stable and clean power
- Battery-independent design – run directly on solar power
- Built-in anti-dust kit for extended lifespan in tough environments
- Wide PV input range up to 5000W for optimal solar harvesting
- Intelligent Load Management to prioritize essential appliances
- Dual Output Grid Feeding – supports grid-tied applications
| KNOX SERIES | Krypton Eco 5000 |
| MODEL | 4kW-24-pV5000-TWIN |
| Rated Power | 5000VA/5000W |
| Battery Mode Power | 4000W |
| PV+Bat Output Power | 4200W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 184 – 264 or 195.5 – 253 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 8400VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 32 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 5000W |
| MPP Range @ Operating Voltage | 30 ~ 450VDC |
| PV Rated Current | 18A |
| Max. Input Current (Isc) | 20A |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 115 x 300 x435 |
| Net Weight (kgs) | 9 |
| Communication Interface | RS232, optional WiFi |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | Storage Temperature | -10°C to 50°C | -15°C to 60°C |
