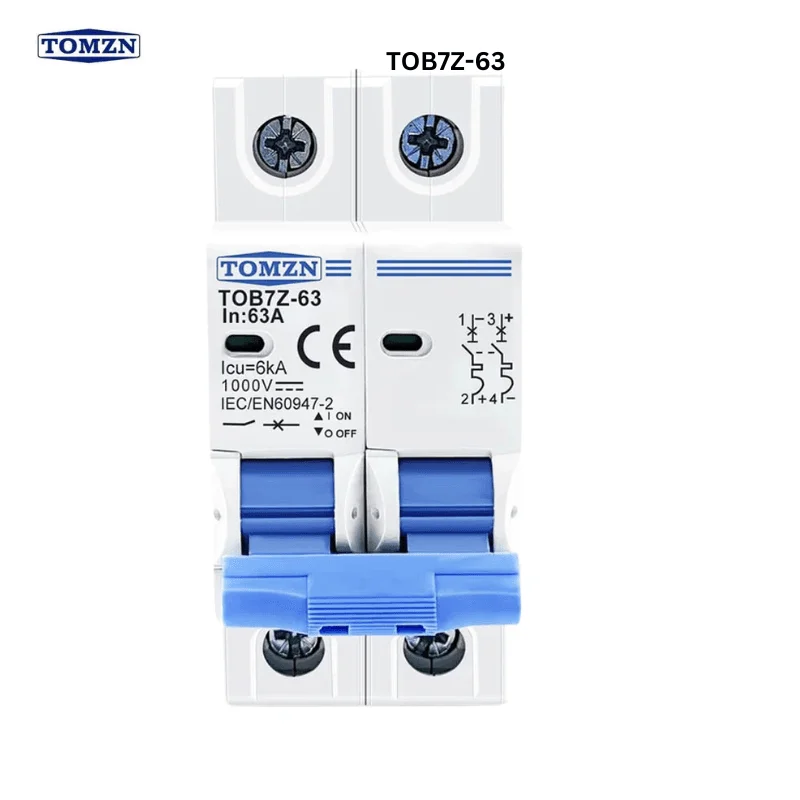

TOB7Z-63 | 2P DC 1000V Circuit Breaker
TOB7Z-63 | 2P DC 1000V Circuit Breaker
- Two-pole DC breaker
- TOB7Z-63 series
- 2 Pole Size
- Voltage rating 1000V DC

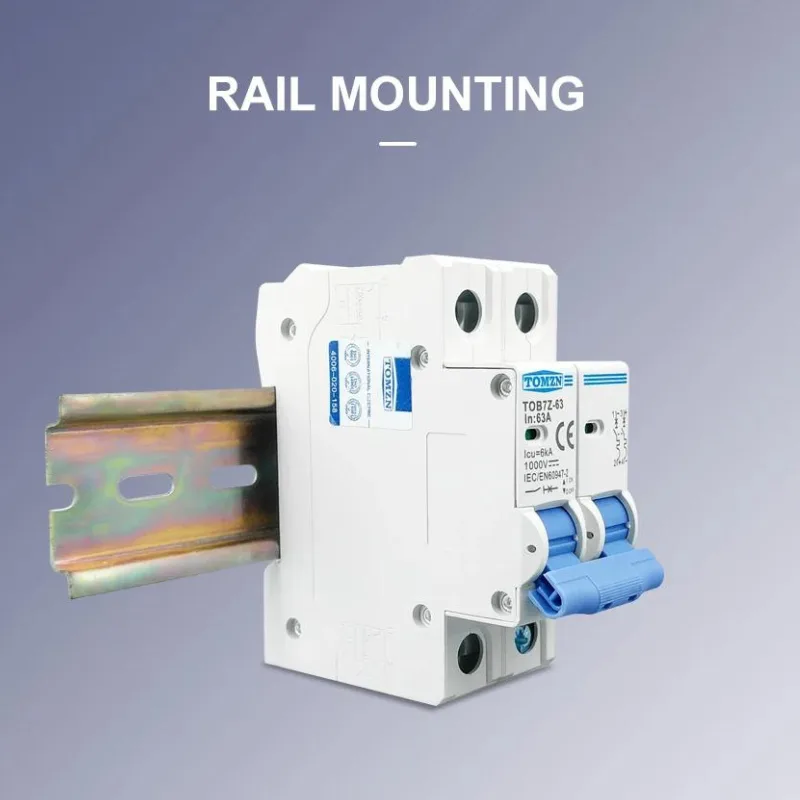

- DIN rail mounting
- MCB type
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: ₨1,420.00.₨1,300.00Current price is: ₨1,300.00.
Payment Methods:
Description
2P DC MCB 1000V Solar Mini Circuit Breaker 3A 6A 10A 16A 20A 25A 32A 40A 50A 63A DC MCB for PV System
TOB7Z-63 is a 2P DC Circuit Breaker circuit breaker is used for DC rated voltage to 1000V, rated current to 63A line, for overload and short circuit protection, and can also be used for infrequent operation of the line.
Circuit breakers are used in DC applications such as communications and photovoltaic systems.
In compliance with IEC/EN606947-2
Maximum connecting ability of 25mm, wiring torque 3Nm, applicable to a variety of installing equipments, wiring stronger.
type:63A
Colour: White
Material: flame-retardant material
Size:80 x 36 x 66mm
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
2P DC 1000V Circuit Breaker
Specifications:
- Condition: New
- Maximum Amperage: 16 A,63A
- Number of Positions: 2
- Number of Phases: DC
- Current Rating: 16 A
- Suitable For: DIN rail
- Color: Grey
- Brand: TOMZN
- Tripping Characteristics: Type C
- Type: Main Breaker
- Current Type: DC
- Voltage: 1000V DC
- Model: TOB7Z-63
- Number of Outlets: 2
- Number of Poles: 2
TOB7Z-63
